Oscillating Conveyor



Prab Oscillating Conveyor Product Brochure






Proven to Increase Productivity Up to 60%
Low Cost, Economical Choice for Small to Large Sized Shops
The PRAB Oscillating Conveyor with eccentric drive incrementally moves material at roughly 12.5 feet (3.81 meters) per minute. Its durable, multi-ply fiberglass springs provide a smooth and quiet flow.

Oscillating Conveyor Configurations | Prab.com



System Benefits:

  • Quiet, smooth, flow and discharge
  • Low maintenance
  • Low cost per foot to install
  • Low cost to operate
  • A single drive can convey over 80 feet on standard standard-duty model
  • Handles hot, dry, or wet materials

Features:

  • Low-maintenance and eccentric single drive uses only four bearings
  • Lubrication points are centrally located for easy access and maintenance
  • Durable, multi-ply fiberglass springs provide smooth, quiet flow and discharge






Backed by the PRAB Difference





Oscillating Conveyors Still Operating in the Field After 62+ Years

Screening And Sorting Configuration With Side Discharge Chute | Prab.com
Screening and sorting configuration with side discharge chute
Prab Oscillators | Prab.com
Oscillators can be used with steel belt conveyors for complete systems
Durable Multi-Ply Fiberglass Springs Provide Smooth, Quiet Flow And Discharge | Prab.com
Durable multi-ply fiberglass springs provide smooth, quiet, flow and discharge

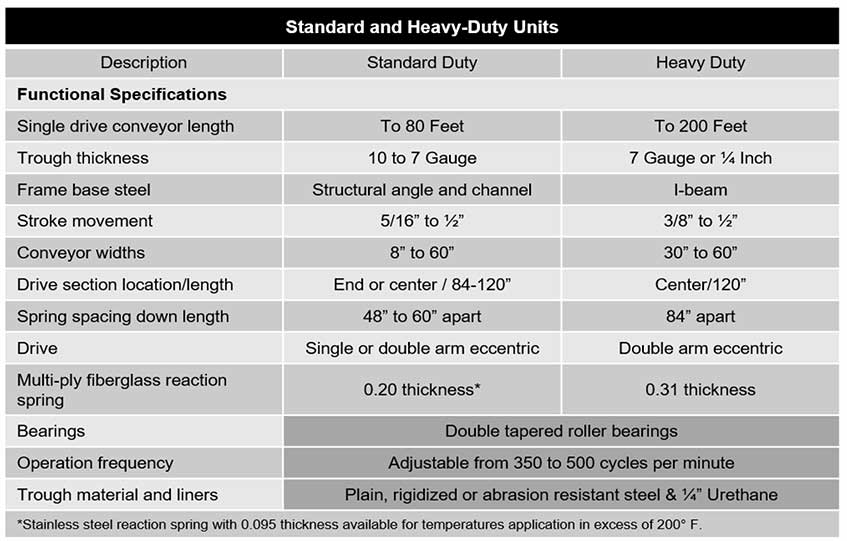

Prab Oscillating Conveyor Standard And Heavy-Duty Units Table



Options:

  • Trough designs are available in square or flared styles
  • Trough surfaces come in smooth, urethane, abrasion-resistant, or PRAB Rigidized steel
  • Screening and sorting configurations are available with side discharge chute
  • Machine-side or pit operation






Contact us to request a quote today
