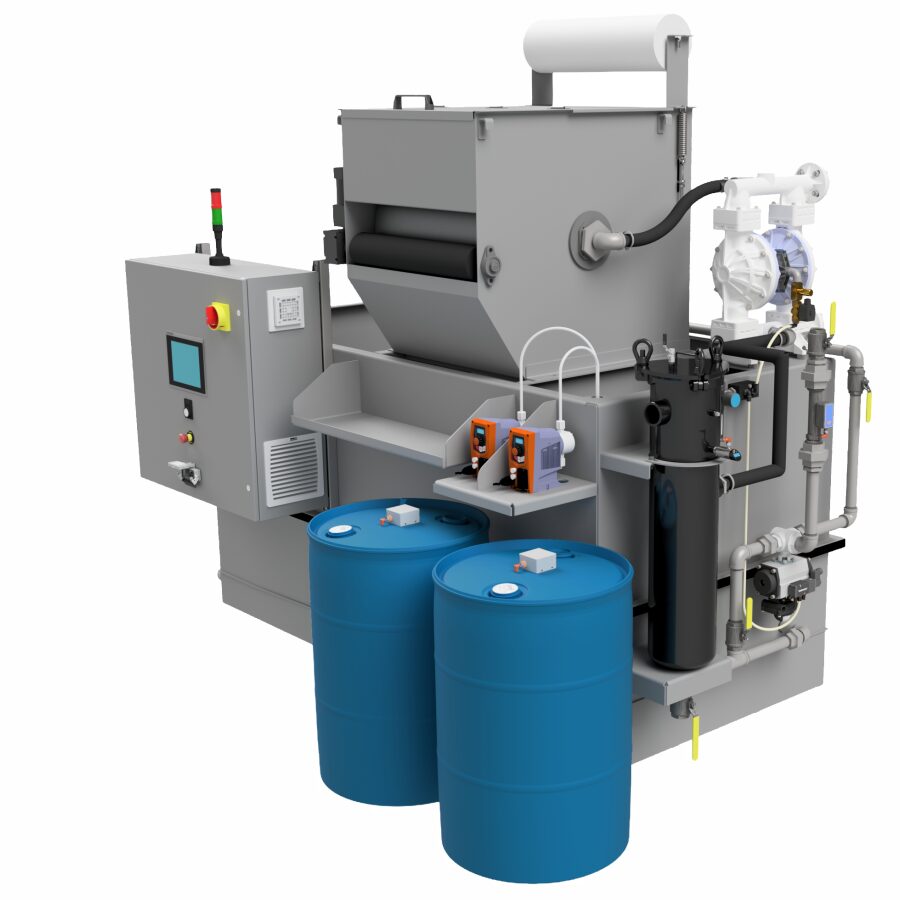

PRAB’s Automated pH Adjustment Systems deliver two outcomes: regulatory discharge compliance and cost-reducing water reuse. Each system continuously monitors and adjusts effluent to maintain the 6.0-9.0 pH range required by EPA and POTW regulations, while automated chemical dosing minimizes reagent consumption and generates auditable compliance records.
When integrated with PRAB’s Process Water Treatment Solutions, pH-adjusted effluent can be reclaimed as process water, closing the loop on water management costs. PRAB offers continuous systems for flow rates above 10 GPM and batch systems for lower-flow or variable-discharge operations, both engineered and tested to meet site-specific permit requirements.
→ Watch the pH Adjustment system video
Two-Stage Pre-FiltrationMesh screen and automatic continuous-band filtering protect sensors and pumps, reduce maintenance frequency, and extend equipment life. |
Precision Chemical DosingAutomated acid and caustic monitoring with controlled injection based on live pH feedback prevents overfeeding and minimizes chemical spend. |
Stainless Steel ConstructionIndustrial-grade tank with optional coatings for expanded chemical compatibility and long service life in harsh environments. |
Fully Automated OperationAutomatic fluid transfer and batch discharge based on tank level and verified pH. Minimal operator intervention. |
Skid-Mounted & Factory TestedPre-assembled for faster installation with reduced field wiring and commissioning time. |
Compliance DocumentationAutomated data logging of pH, volume, and time/date per batch. Email reporting and fault notifications included. |
WHY BATCH PROCESSING MATTERS: Full reaction time before every discharge. Every batch is verified before drain or recirculation — less chemical waste, less freshwater draw, water reuse ready.
Four standard skid-mounted pH treatment systems — rapid fill and rapid discharge. 8,000 to 39,000 GPD. Custom chemistries available.
| Model | 24-Hr. Daily Flow | Max Fill Rate (GPM) | Tank Capacity (Gal.) | Dimensions (L × W × H) |
| pH 400 | 8,000 gal. | 95 GPM | 400 gal. | 90 × 73 × 99 in. |
| pH 800 | 15,000 gal. | 132 GPM | 800 gal. | 120 × 68 × 99 in. |
| pH 1200 | 23,000 gal. | 132 GPM | 1,200 gal. | 169 × 78 × 135 in. |
| pH 2000 | 39,000 gal. | 264 GPM | 2,000 gal. | 174 × 92 × 158 in. |
PRAB batch pH neutralization systems treat acidic or alkaline water streams for two outcomes: compliant discharge and direct return to your manufacturing process. Unlike continuous-flow systems that rely on aggressive dosing, PRAB’s batch design delivers uniform, fully verified water quality — so treated water is ready for drain or recirculation every cycle.
| 01 | Pre-Filtration
|
| 02 | Controlled Batch Neutralization
|
| 03 | Verification, Discharge or Reuse
|
| Specification | Detail |
| Wastewater Chemistry | Acidic or Alkaline |
| Daily Throughput | Up to 39,000 GPD (standard) |
| Discharge Limits | POTW-compliant target pH |
| Footprint | Skid-mounted, compact design |
| Automation | Full data logging — Built-in IIoT |
| Tank Material | Stainless Steel |
| Filtration Stage 1 | Mesh screen — large solids |
| Filtration Stage 2 | 50-micron automatic drum |
| Chemistry Dosing | Dual — Acid & Caustic |
| Controls | PLC + Touchscreen HMI |
| Custom Chemistries | Available based on application requirements |
Detailed information:
PRAB pH Adjustment Systems Brochure
Example System
Other Downloadable Content
PRAB Fluid Filtration Solutions Product Selection Chart Brochure
PRAB Fluid Filtration Systems and Wastewater Treatment Brochure
PRAB Filtration Spectrum Brochure
PRAB Industrial Water & Wastewater Treatment Systems Brochure
PRAB Industrial Water & Wastewater Treatment Technologies Brochure
