Compliance
Meet stringent environmental standards with ease. Our E-Series systems provide a practical solution for Federal EPA and ISO 14001 regulations, ensuring your operations remain compliant and allowing you to concentrate on your core business.
Health & Safety
PRAB E-Series Chip Processing System boosts workplace safety by cutting metal scrap volume, reducing storage needs, and eliminating clutter. Streamline scrap management for a cleaner, safer environment, minimizing hazards and focusing on production.
Low Maintenance
PRAB E-Series Chip Processing Systems are designed for reliability with minimal maintenance. Built to last, they ensure smooth operation and less downtime, letting you focus on your business. Choose PRAB for long-term efficiency and dependability.
Value
Maximize Value: Turn scrap and fluid waste into revenue by extracting every bit of value. Reduce labor costs by automating processes, freeing your team for more critical tasks.

Efficient Metal Chip Processing & Fluid Filtration Solutions for Small to Medium Shops

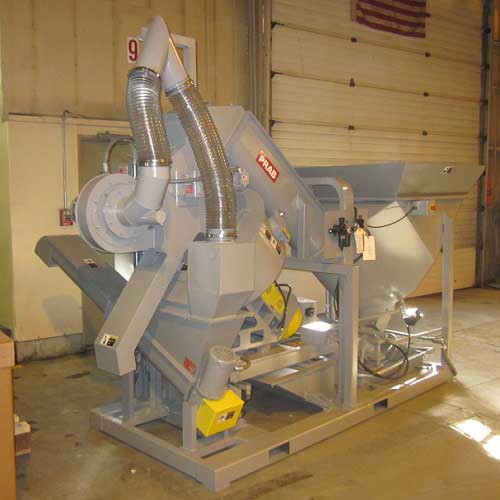

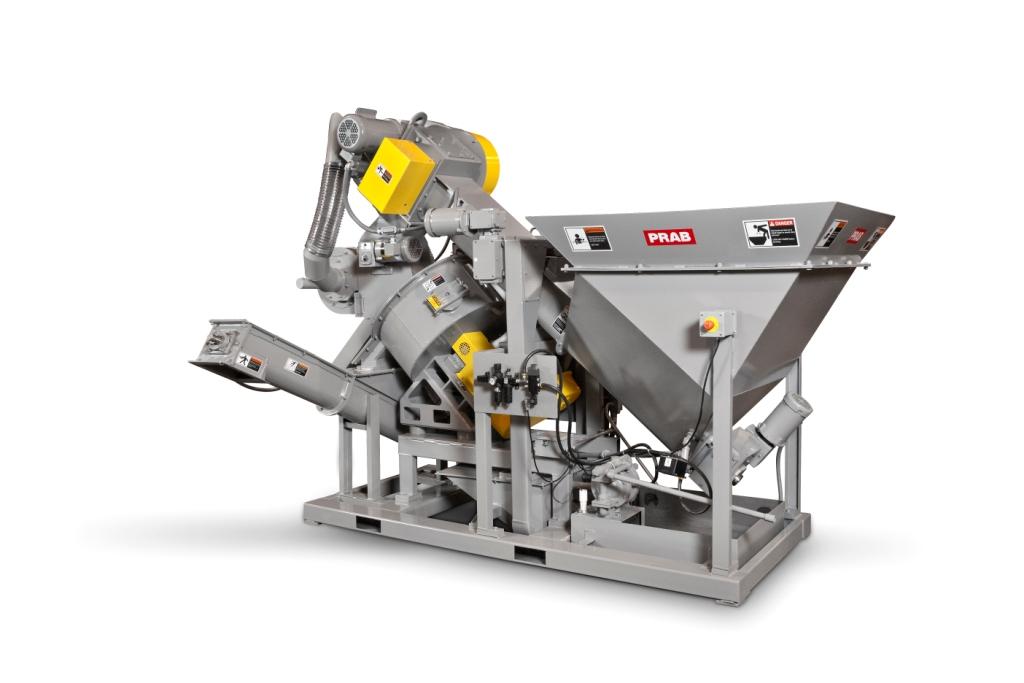

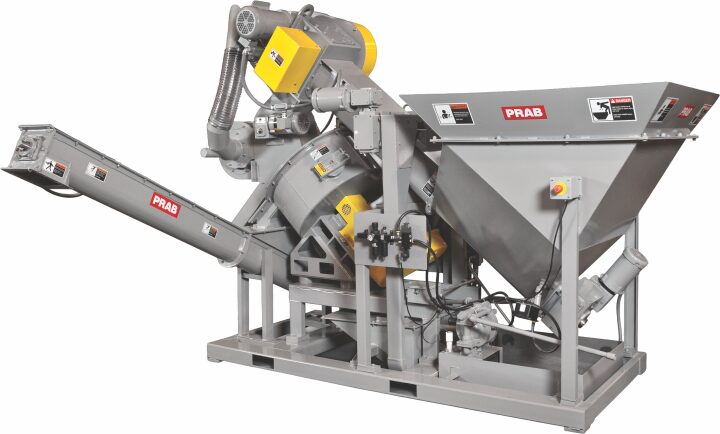

PRAB’s compact E-series metal chip processing systems are designed to reduce the volume of metal scrap turnings while providing superior solid-liquid separation for small to medium volumes of flowable chips.

With advanced fluid reclamation and dry chip output, these systems are ideal for smaller shops looking to optimize their metalworking operations.

Key Features of the E-Series Metal Chip Processing System:

  • Self-Contained, Portable Design: Forklift-ready, allowing easy placement and relocation within your facility.
  • Infeed Hopper with Screw Conveyor: Efficiently moves metal chips and loose turnings, with an optional turnings shredder or wringer for enhanced processing.
  • High-Efficiency Diagonal Shaft Wringer: This wringer removes moisture from chips using over 600 G’s of centrifugal force, ensuring maximum fluid recovery.
  • Extended Service Life: Exclusive reversing feature that minimizes wear and tear on the equipment.
  • Automated Discharge Conveyor: Seamlessly transfers processed chips to the container, reducing manual handling.
  • Integrated 50-gallon Fluid Recovery Tank: Captures and reclaims coolant for reuse, enhancing cost savings.
  • Advanced Control Panel: The HMI Panel controls all system functions for streamlined operation.

PRAB is the industry leader in metal chip processing (aka Metal Swarf Processing), and coolant filtration systems, offering reliable solutions that reduce waste, lower cutting oil costs, and improve overall productivity. Contact PRAB today to learn how our expert team can solve your metalworking challenges with tailored solutions that fit your shop’s needs.

E-Series Chip Processing Systems | Prab.com
E-Series Chip Processing Systems

Options

  • Shredder to reduce turnings into flowable chips.
  • Separator to remove bar ends and solids from chip flow.
  • Recirculating Drag Conveyor that automatically cleans the fluid recovery tank.
  • Spent fluids filter. The Paper Bed Filter is the first step to the recycle and reuse of fluids.
  • Auto lube systems for automatic greasing of bearings.

Nominal Chip Throughput

  • Steel 750 lbs/hr
  • Brass 600 lbs/hr
  • Aluminum 250 lbs/hr
  • Cast Iron 800 lbs/hr

Image Right: Auto lube systems are designed to automatically supply a small quantity of clean grease or oil to bearings on a regular basis-improving bearing performance and eliminating maintenance required for manual greasing.

Auto Lube Systems | Prab.com

PRAB Briquetter E-Series Metal Chip Processing System 3D Operation

The PRAB E-Series System provides metalworking operations a fully automated compact, skid-mounted chip processing solution that is proven to increase scrap value by 25%. Here’s how it works: A screw conveyor meter-feeds metal scrap to the system’s conveyor-mounted shedder. The shredder reduces light to moderate wads of turnings with high torque, low speed shearing generating flowable chips at a volume reduction up to 4 to 1. Material then flows through the tramp metal separator, removing occasional solids. Chips are blown into the system’s continuous wringer and tramp metal falls into a separate hopper. The Wringer/Centrifuge uses 600 G’s of centrifugal force to remove up to 98% of fluids, creating dry chips. PRAB’s Wringer/Centrifuge utilizes an exclusive reversing feature to extend service life and minimize maintenance. The metalworking fluids pass through the screen while the dry chips are gravity discharged into the discharge conveyor. Fines are recirculated back into the system for additional processing. The E-Series is designed for small to medium material volumes and can process most machining metal short turnings and chips. The system’s recovery tank captures the reclaimed fluid, where it can be pumped to a PRAB Guardian Coolant Recycling System for processing and reuse. The Guardian reduces new fluid purchases up to 75% and decreases fluid disposal costs by 90%. Built to last, the E-Series from PRAB is constructed of the highest quality wear resistant material, features PLC/HMI controls, and is virtually plug-and-play: pre-wired, pre-plumbed and mounted on a skid. The system’s integrated forklift pockets enable operators to quickly and easily set up or move the E-Series Chip Processing System.

To discuss your custom application
