PRAB Magnetic Separators- SS

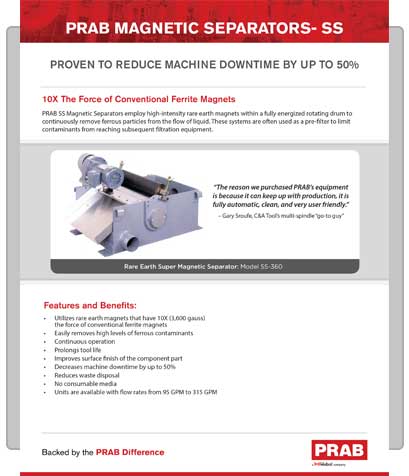

Download PDF
Proven to Reduce Machine Downtime by Up to 50%
10X The Force of Conventional Ferrite Magnets

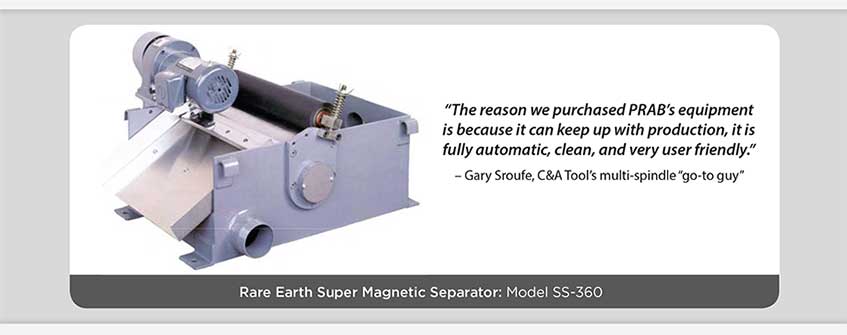

PRAB SS Magnetic Separators employ high-intensity rare earth magnets within a fully energized rotating drum to continuously remove ferrous particles from the flow of liquid. These systems are often used as a pre-filter to limit contaminants from reaching subsequent filtration equipment.
Features and Benefits:
- Utilizes rare earth magnets that have 10X (3,600 gauss) the force of conventional ferrite magnets
- Easily removes high levels of ferrous contaminants
- Continuous operation
- Prolongs tool life
- Improves surface finish of the component part
- Decreases machine downtime by up to 50%
- Reduces waste disposal
- No consumable media
- Units are available with flow rates from 95 GPM to 315 GPM
Quick Ship: Most Units Ship in 5-7 Days

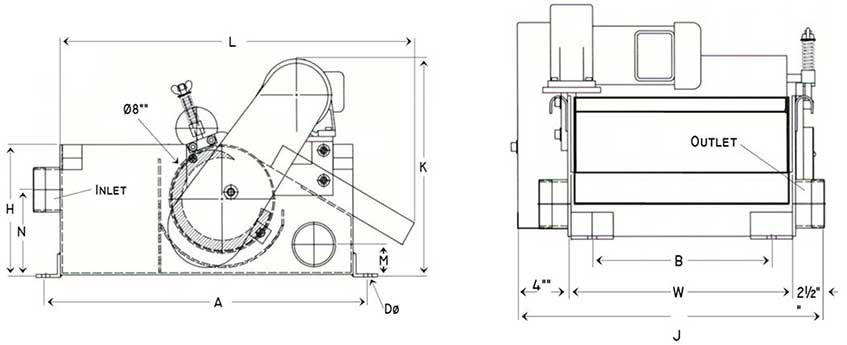

Specifications:
Model
Flow
Rate
L
W
H
M
N
A
B
D
J
K
Inlet
Outlet
Motor
HP
SS-360
95 GPM
32”
24”
10.5”
3”
7”
25”
21”
1/2”
31”
17.5”
4”
4”
1/8
SS-500
130 GPM
32”
32”
10.5”
3”
7”
25”
29”
1/2”
39”
17.5”
5”
5”
1/8
SS-800
210 GPM
32”
48”
10.5”
3”
7”
25”
45”
1/2”
54”
17.5”
5”
5”
1/4
SS-1000
260 GPM
28”
66”
10.5”
3”
7”
26”
56”
1/2”
66”
17.5”
5”
5”
1/4
SS-1200
315 GPM
28”
72”
10.5”
4.5”
7”
26”
68”
1/2”
78”
17.5”
8”
8”
1/4
All dimensions for reference only.
