PRAB Magnetic Separators – MCJ-A

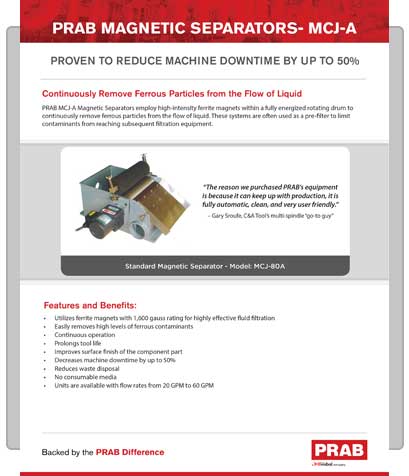

Product Brochure PDF Cover | Prab.com

Download PDF




Proven to Reduce Machine Downtime By Up to 50%

Continuously Remove Ferrous Particles from the Flow of Liquid

PRAB MCJ-A Magnetic Separators employ high-intensity ferrite magnets within a fully energized rotating drum to continuously remove ferrous particles from the flow of liquid. These systems are often used as a pre-filter to limit contaminants from reaching subsequent filtration equipment.

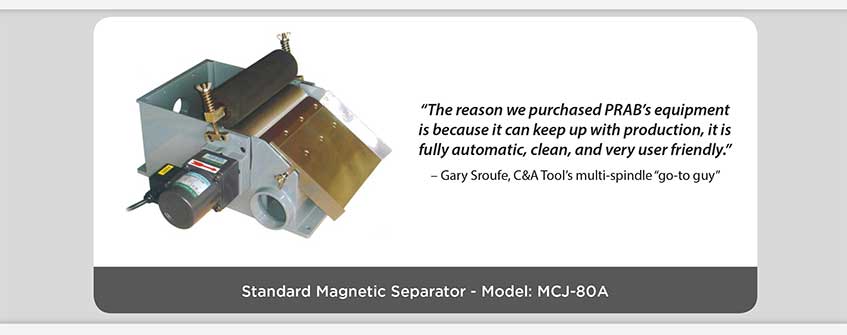

Product Brochure: PRAB Magnetic Separators - MCJ-A Hero Image | Prab.com


Features and Benefits:

  • Utilizes ferrite magnets with 1,600 gauss rating for highly effective fluid filtration
  • Easily removes high levels of ferrous contaminants
  • Continuous operation
  • Prolongs tool life
  • Improves surface finish of the component part
  • Decreases machine downtime by up to 50%
  • Reduces waste disposal
  • No consumable media
  • Units are available with flow rates from 20 GPM to 60 GPM



Backed by a PRAB 100% Performance Guarantee




Quick Ship: Most Units Ship in 5-7 Days

Specifications:

MCJ-80A to MCJ-160A Drawing | Prab.com

MCJ-80A to MCJ-160A Drawing

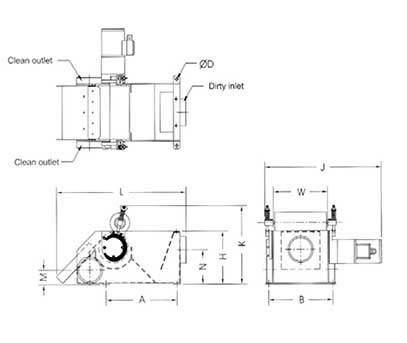

MCJ-240A Drawing | Prab.com

MCJ-240A Drawing


Model
Flow
Rate
L
W
H
M
N
A
B
D
J
K
Inlet
NPT
Outlet
NPT
Motor
HP
MCJ-80A
20 GPM
18.25″
9.5″
7.25″
2″
4.3″
15.7″
8.3″
7/16″
17.6″
11″
2″
2.5″
1/16
MCJ-120A
30 GPM
19”
10.6”
8.7”
2.5”
5.5”
15.7”
9”
7/16”
18.6”
12.4”
3”
3”
1/10
MCJ-160A
40 GPM
19”
14”
8.7”
2.5”
5.5”
15.7”
12.3”
7/16”
21.9”
12.4”
3”
3”
1/10
MCJ-240A
60 GPM
19.8”
17.7”
7.9”
2.5”
4.9”
10.8”
19.2”
7/16”
27.1”
11.6”
3”
3”
1/10


Applications:

  • Ferrous Metal Machining
  • Production Grinding Applications
  • General Machining
  • ID & OD Grinding
  • Honing
  • Gear Cutting
  • Lapping
  • Gun Drilling
  • Lathe Operations



Contact us to request a quote today
