PRAB Magnetic Separator- MCA Brochure

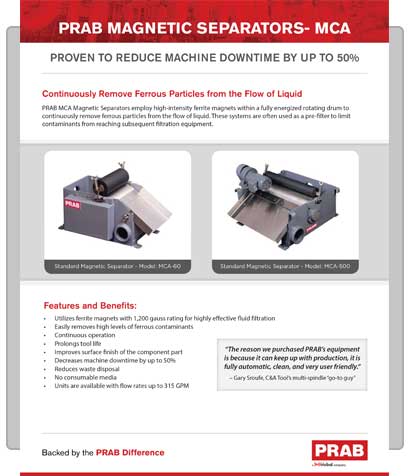

Product Brochure PDF Cover | Prab.com

Download PDF





Proven to Reduce Machine Downtime By Up to 50%
Continuously Remove Ferrous Particles from the Flow of Liquid

PRAB MCA Magnetic Separators employ high-intensity ferrite magnets within a fully energized rotating drum to continuously remove ferrous particles from the flow of liquid. These systems are often used as a pre-filter to limit contaminants from reaching subsequent filtration equipment.

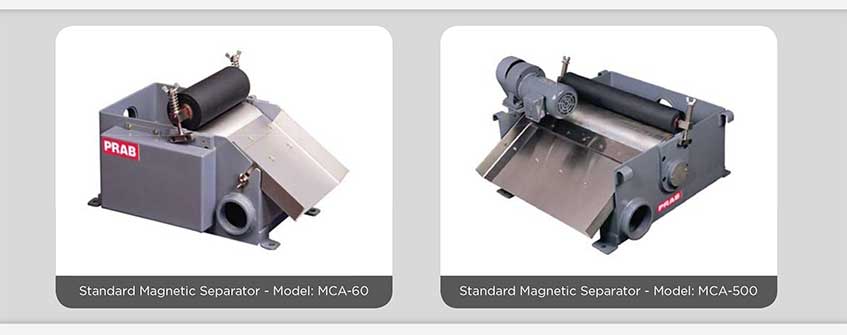

Standard Magnetic Separator - Model: MCA-60 & MCA-500 | Prab.com



Features and Benefits:

  • Utilizes ferrite magnets with 1,200 gauss rating for highly effective fluid filtration
  • Easily removes high levels of ferrous contaminants
  • Continuous operation
  • Prolongs tool life
  • Improves surface finish of the component part
  • Decreases machine downtime by up to 50%
  • Reduces waste disposal
  • No consumable media
  • Units are available with flow rates up to 315 GPM



“The reason we purchased PRAB’s equipment is because it can keep up with production, it is fully automatic, clean, and very user friendly.”





– Gary Sroufe
C&A Tool’s multi-spindle
“go-to guy”







Backed by the PRAB Difference





Quick Ship: Most Units Ship in 5-7 Days



Specifications:



Model
Flow
Rate
L
W
H
M
N
A
B
D
J
K
Inlet
Outlet
Motor
HP
MCA-20
5 GPM
18″
5″
8″
2.5″
6″
16″
4″
1/2″
9″
12″
1-1/2″
1-1/2″
1/16
MCA-40
10 GPM
18″
6″
8″
2.5″
6″
16″
4″
1/2″
10″
12″
2″
2″
1/16
MCA-60
15 GPM
18″
8″
8″
2″
6″
16″
7″
1/2″
12″
12″
2″
2″
1/16

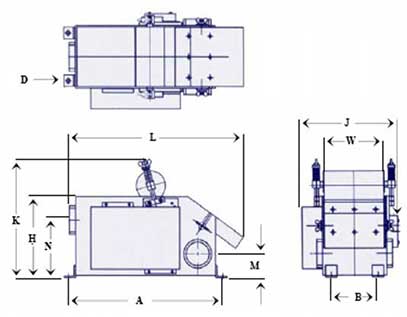

Drawing for MCA Models 20 to 60 | Prab.com



Drawing for MCA Models 20 to 60

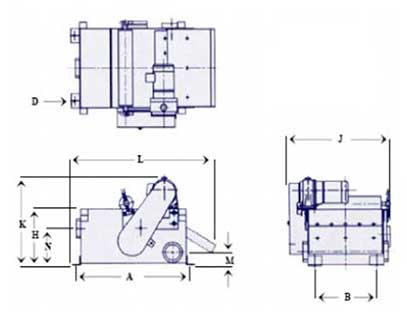

Drawing for MCA Models 360 to 1200 | Prab.com



Drawing for MCA Models 360 to 1200





Model
Flow
Rate
L
W
H
M
N
A
B
D
J
K
Inlet
Outlet
Motor
HP
MCA-360
95 GPM
32″
24″
12″
3″
8″
26″
21″
5/8″
31″
19″
1-1/2″
4″
1/8
MCA-500
130 GPM
32″
32″
12″
3.5″
8″
26″
29″
5/8″
39″
19″
5″
5″
1/8
MCA-800
210 GPM
32″
48″
12″
3.5″
8″
26″
44″
5/8″
54″
19″
5″
5″
1/4
MCA-1000
260 GPM
32″
60″
16″
5″
11″
33″
56″
5/8″
66″
22″
6″
6″
1/4
MCA-1200
315 GPM
32″
72″
20″
6″
15″
32″
68″
5/8″
78″
27″
8″
8″
1/4



Applications:

  • Ferrous Metal Machining
  • Production Grinding Applications
  • General Machining
  • ID & OD Grinding
  • Honing
  • Gear Cutting
  • Lapping
  • Gun Drilling
  • Lathe Operations
