Ultrafiltration for Tumbling and Vibratory Deburring Applications – A Modern Manufacturing Solution

Ultrafiltration (UF) technology enables manufacturers to recycle water from tumbling and deburring processes, reducing water and sewer costs by up to 99%, decreasing chemical usage, and maintaining compliance with stringent environmental regulations—all while enhancing operational efficiency.

The Manufacturing Challenge

A U.S.-based die casting and fabrication manufacturer faced a significant challenge: managing wastewater from two vibratory deburring systems without exceeding local environmental discharge limits.

  • Industry: Medical, electronic, and bank security components
  • Process: Tumbling/Vibratory deburring of aluminum and zinc castings
  • Problem: 1,000–1,800 gallons per day of contaminated tumbling water discharged into the sewer

Contaminants:
• Alkaline detergent
• Fine solids from ceramic media
• Metal fines (copper, lead, zinc)

Traditional methods, including centrifuges, hydrocyclones, cartridge/bag filters, chemical treatments, evaporators, and gravity settling, were tested. All failed due to short filter life, excessive maintenance, or high chemical and labor costs. Outsourcing deburring operations was considered, but they risked losing quality control and production flexibility.

PRAB’s Ultrafiltration Approach

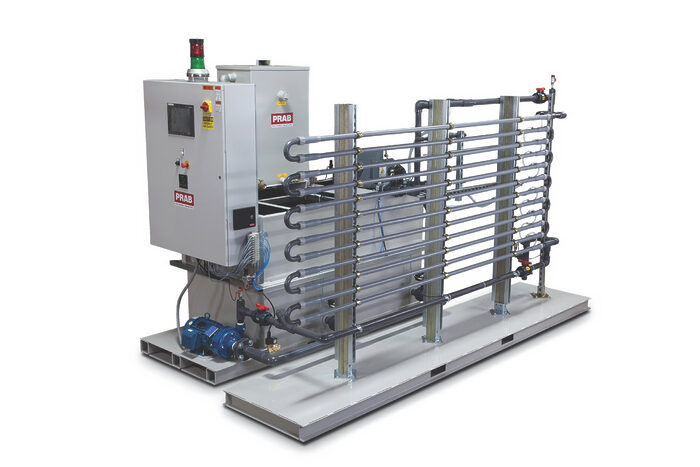

PRAB Industrial ultrafiltration system with tubes

PRAB applied a closed-loop ultrafiltration (UF) solution designed around three core principles:

  1. Keep It Simple – Minimize operator intervention and maintenance.
  2. Automate Whenever Possible – Reduce reliance on labor.
  3. Recycle Fluids – Extend the life of water and detergents to lower operating costs

By integrating UF into the manufacturer’s process water loop, the tumbling wastewater could be clarified, recycled, and reused without discharge to sewer. The system became the heart of their fluid recycling process.

Business Benefits Realized

Within the first year of operation, the Ultrafiltration Recycling System delivered measurable, bottom-line results:

  1. 99% reduction in water and sewer discharge → Over 375,000 gallons saved annually
  2. 90% reduction in chemical soap purchases → More than 350 gallons of detergent saved
  3. Minimal labor requirement → Just 1–2 hours per week for system checks
  4. Regulatory compliance → Clean permeate solution consistently met discharge standards
  5. Lower operating costs → Only $0.006–$0.013 per gallon versus $0.05–$0.07 per gallon for chemical treatment

The only byproducts were a single drum of solid sludge and one drum of concentrated liquid waste—far less than the sludge-heavy output from chemical systems.

Why Ultrafiltration Matters in Today’s Manufacturing Environment

  1. Sustainability and ESG Goals
    1. Manufacturers are facing increasing pressure from regulators, customers, and shareholders to minimize their environmental impact. UF systems enable closed-loop water reuse, drastically reducing freshwater demand and wastewater generation.
  2. Cost Avoidance
    1. Municipal discharge fees, rising chemical costs, and water scarcity make traditional wastewater management unsustainable. UF reduces the total cost of ownership by extending fluid life and eliminating unnecessary chemical treatment.
  3. Regulatory Compliance
    1. Stricter discharge limits on heavy metals and detergents require advanced separation technologies. UF ensures compliance with both local and federal environmental regulations.
  4. Operational Efficiency
    1. With automated controls and minimal labor input, UF systems free up skilled staff for higher-value tasks, while ensuring process consistency and uptime.

Applications Across Industries

While this case focused on a die casting and fabrication manufacturer, ultrafiltration applies to a wide range of industries:

  • Automotive and Aerospace: Removal of machining fines and oils from coolant and wash water
  • Medical Device Manufacturing: Ensuring process water meets high-purity requirements
  • Electronics and Semiconductor: Reducing micro-contaminants for precision component finishing
  • Metalworking Operations: Recycling coolant, tumbling water, and vibratory deburring fluids

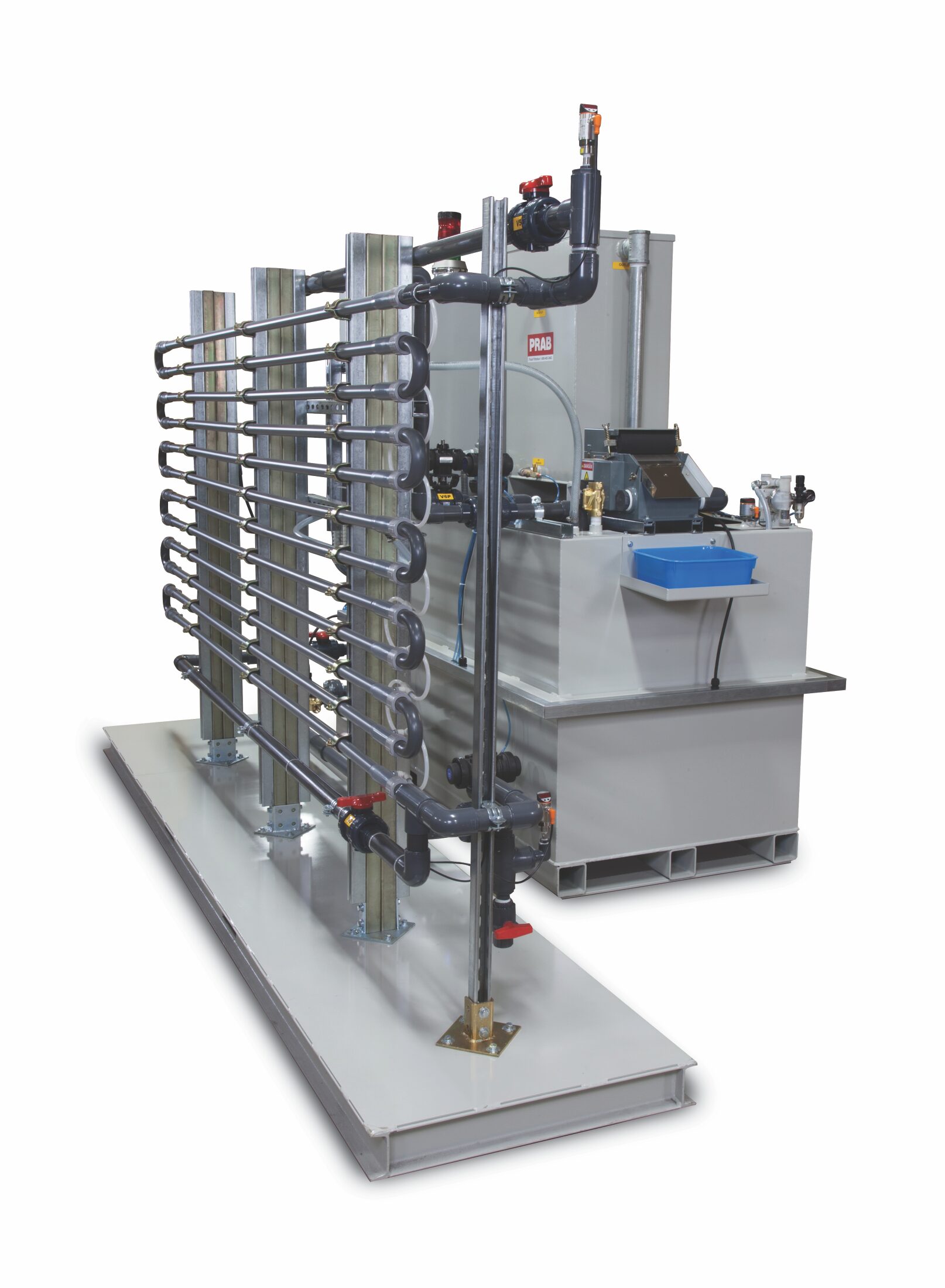

PRAB Highlight: Why Manufacturers Choose PRAB UltrafiltrationPRAB Industrial ultrafiltration system | Industrial wastewater treatment systems

PRAB’s UF systems are engineered for durability, integration, and measurable ROI:

  • Proven closed-loop recycling systems that reduce water and detergent purchases by up to 90%
  • Integration with conveyors, chip processing, and coolant recycling systems for complete plant solutions
  • Support backed by 200+ technical briefs, case studies, and white papers demonstrating long-term performance

Explore more resources:

Case Studies

White Papers

Technical Briefs

Ultrafiltration Effectiveness Testing Services

Final Word

For manufacturers navigating rising water costs, tightening environmental standards, and competitive market pressures, ultrafiltration offers a practical and proven path forward. By transforming wastewater into a reusable resource, companies can cut costs, reduce risk, and contribute to a cleaner, more sustainable industrial future.

Learn more about PRAB Ultrafiltration Systems
