PV Panels Production

Download PDF

Customer A leading global provider of comprehensive photovoltaic (PV) solar systems using advanced module and system technology. Their business ranges from module sales to turnkey power plant development and operations and maintenance. Customer’s Needs The Client aims to

  • reduce disposal costs;
  • achieve ZLD and water reuse;
  • consider a technological solution which allowed to re-sell the by-product in the future.

The Plant | Malaysian plant

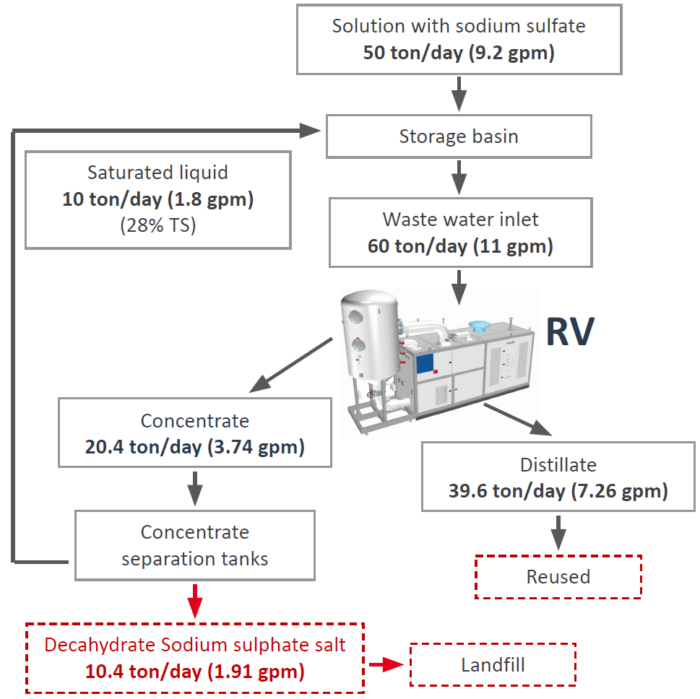

Analysis and Plant Process Diagram

Parameters

u.m.

Waste in

Distillate out

Concentrate out

pH

–

11

9

11

TS at 105°C

%

12.8

<0.01

>80

Conductivity

μS/cm

97,100

<50

–

Sulphates

ppm

86,500

<10

–

Sodium

ppm

56,000

<5

–

Chlorides

ppm

1,350

<5

–



Technology Type

Material

Footprint (m²)

RV F 60 FF

UNS S32750

18

EVALED RVF60 Web

Results

Water reused: 79.2% Concentration factor: 4.8 times

The solution achieved:

  • complete ZLD: waste water reduction 100%;
  • a remarkable wastewater disposal costs reduction.
  • important disposal cost reduction.
  • Repeat Orders
    • 2013 Germany
    • 2016 First line in USA
    • 2016 Malaysia
    • 2017 Vietnam
    • 2018 Second line in USA
