PRAB Magnetic Conveyors

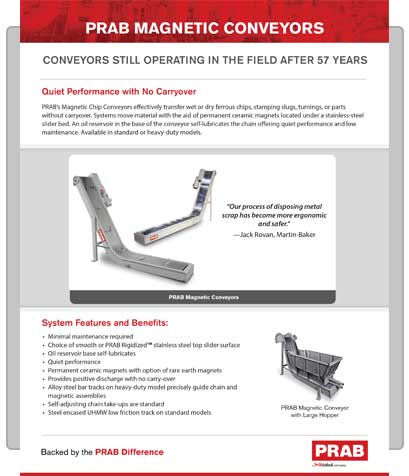

Product Brochure PDF Cover | Prab.com





PRAB Magnetic Conveyors are Still Operating in the Field After 60 Years. Quiet Performance with No Carryover

PRAB’s Magnetic Chip Conveyors effectively transfer wet or dry ferrous chips, stamping slugs, turnings, or parts without carryover. Systems move material with the aid of permanent ceramic magnets located under a stainless-steel slider bed. An oil reservoir in the base of the conveyor self-lubricates the chain, offering quiet performance and low maintenance. Available in standard or heavy-duty models.

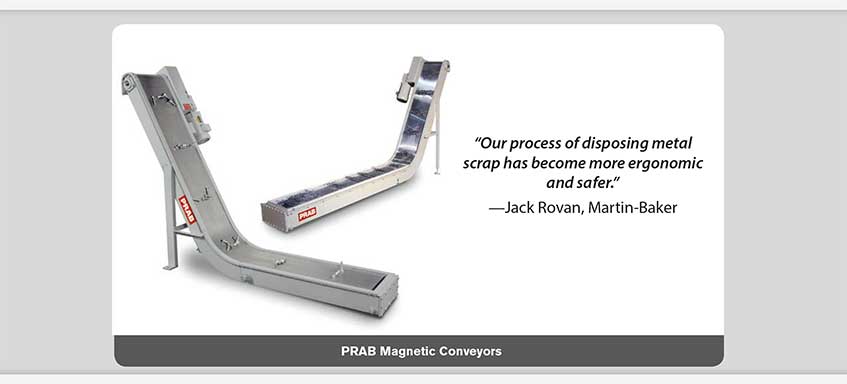

PRAB Magnetic Conveyors Hero Image | Prab.com



System Features and Benefits:

  • Minimal maintenance required
  • Choice of smooth or PRAB Rigidized™ stainless steel top slider surface
  • Oil reservoir base self-lubricates
  • Quiet performance
  • Permanent ceramic magnets with option of rare earth magnets
  • Provides positive discharge with no carry-over
  • Alloy steel bar tracks on the heavy-duty model precisely guide the chain and magnetic assemblies
  • Self-adjusting chain take-ups are standard
  • Steel-encased UHMW low-friction track on standard models
PRAB’s Magnetic Chip Conveyors | Prab.com



PRAB Magnetic Conveyor with Large Hopper







Backed by the PRAB Difference





Proven to Raise Productivity Up to 60%

Configurations:

Z-Style

  • Different elevation of discharge point
  • For use in filling larger containers
  • Used in overhead layouts

L-Style

  • Different elevation of the discharge point
  • For use in filling small containers

Straight

  • Horizontal or inclined layouts



Standard Model

Designed for less strenuous scrap handling applications. This scrap conveyor features a steel-encased, UHMW low-friction track for dependable performance.

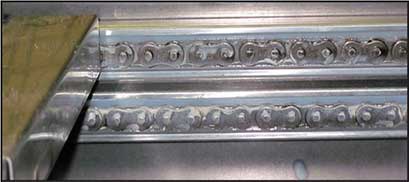

Steel encased UHMW low friction track on standard model | Prab.com



Steel-encased UHMW low-friction track on the standard model





Heavy-Duty Model

The heavy-duty magnetic conveyor features a self-adjusting drive-chain take-up and alloy-steel bar tracks that precisely guide the chain and magnetic assemblies under heavier loads. Rare earth magnets are available for heavy-duty applications.

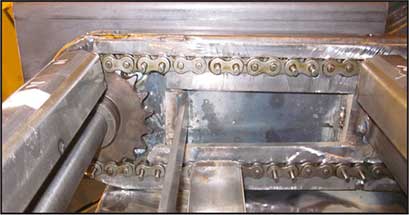

Alloy steel bar tracks on heavy-duty model | Prab.com



Alloy steel bar tracks on heavy-duty model





Model Specifications:

Description
Standard Duty
Heavy Duty
Carry Width (CW)
6-7/8” to 18-3/4”
Up to 200’
Overall Width
9-3/8” to 21-1/4”
9-5/8’ to 26’
Overall Length
Structural Angle and Channel
I-beam
Discharge Height (V)

3/8” to 1/2”
Nose-over Options
30°, 45°, 60°, and 75°
L-Style only of 45° and 60°





Contact us to request a quote today
