PRAB Horizontal Screw Press



Product Brochure PDF Cover | Prab.com



Proven to Remove Up to 85% of Fluid

Dewater Swarf & Filter Cake

Disposing hazardous grinding swarf or filter cake can be difficult and expensive. PRAB’s horizontal screw press processes material that is 40 to 50% wet with coolant or cutting oils to remove up to 85% of fluid. Use as a stand-alone unit or in combination with the Dualpak™ Briquetter to recover up to 95% of fluids. Recycle fluids with one of PRAB’s fluid filtration and recycling units for even greater savings.

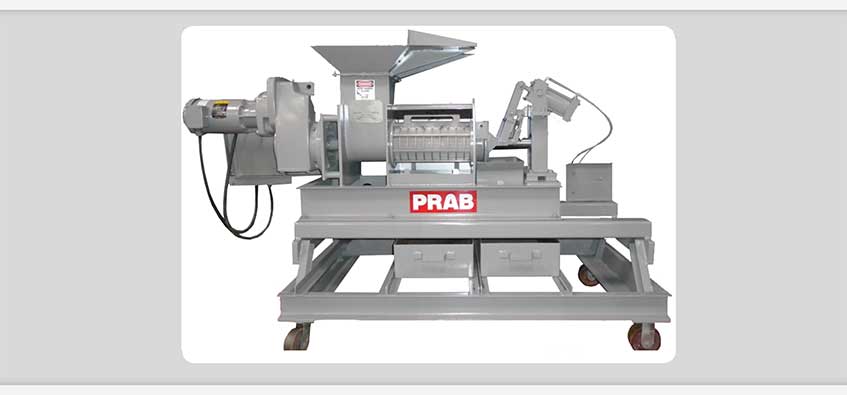

PRAB Horizontal Screw Press Hero Image | Prab.com


Top Features & Benefits

  • Decreased disposal costs
  • Removes up to 85% of fluid for recapture and reuse
  • Stand-alone or in combination with the DualpakBriquetter

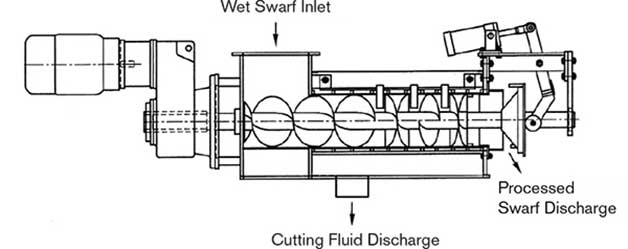

PRAB Horizontal Screw Press Features | Prab.com



Backed by the PRAB Difference




Dewater Swarf & Filter Cake

How it Works

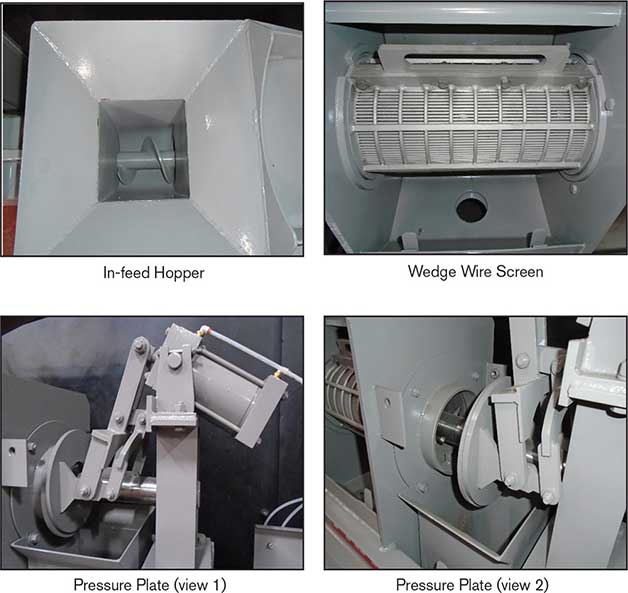

Material is fed into an opening on top of the press (in-feed hopper), passing through a variable pitched auger screw and then compressed against the end plate (held in position by an air cylinder).

As the material is squeezed, the extracted fluid passes through a wedge wire screen where it is collected for safe disposal.

Material then presses against the end plate (or pressure plate), forcing the end plate to open and allow the de-watered material to discharge. The resistance of the end plate can be adjusted as required.

PRAB Horizontal Screw Press How It Works | Prab.com


Specifications

Model
Capacity
Screw RPM
Max HP
Dimensions L x W x H
Weight
SP-6
200 lb/hr
5-25
3
6 x 1.2 x 2 ft
800 lb
SP-10
600 lb/hr
5-20
5
9 x 2 x 3 ft
2,000 lb
SP-16
2,000 lb/hr
5-20
10
13.5 x 3 x 5 ft
5,000 lb



Contact us to request a quote today
