Product Brochure | PRAB E-Series Chip Processing System



Proven to Increase Scrap Value Up to 25%

Produce 98% Dry Chips and Reclaim Cutting Fluid for Increased Metal Scrap Value


The PRAB E-Series Chip System is a dependable, fully automated system for reclaiming valuable cutting fluid from wet metal chips and turnings. This compact unit is designed for small- to medium-volume materials and can process Aluminum, Brass, cast iron, steel, or stainless steel. The system will provide you with a fast return on investment and is delivered ready to go.

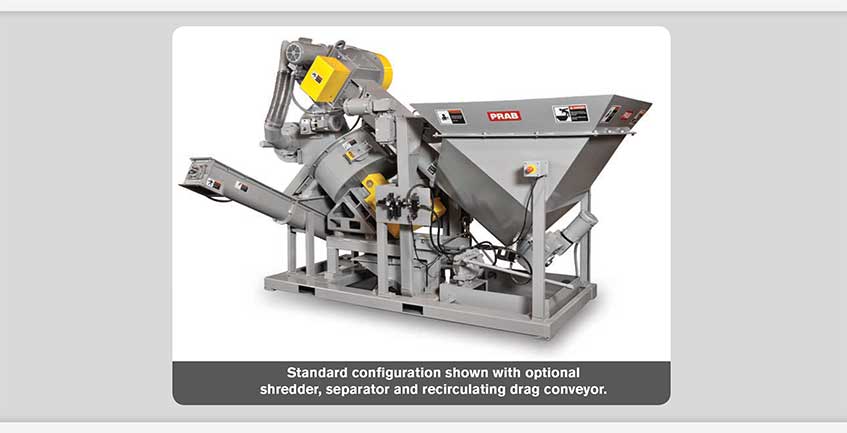

PRAB E-Series Chip Processing System Brochure Hero Image | Prab.com



Standard Features & Benefits

  • Recycle flowable wet metal chips and turnings, and reclaim cutting fluids
  • Completely self-contained and forklift-portable
  • Produces up to 98% dry chips in a  wringer with 600 G’s of force
  • Extended service life with exclusive wringer reversing feature
  • Screw conveyor meter feeds system
  • The discharge screw conveyor elevates processed chips for disposal
  • 50-gallon fluid recovery tank
  • User-friendly PLC controls with touchscreen HMI
  • Occupies just a 4’ x 10’ area
“PRAB has truly helped us get more money for our waste metal and improve our process efficiency and safety.”

– Tom Dyment, Project Manager Ingersoll Tillage Group






Backed by a PRAB 100% Performance Guarantee






Compact Chip Processing System – Ideal for Smaller Shops





PRAB E-Series Chip System: Optional Features

  • Shredder to reduce turnings into flowable chips
  • Separator to remove bar ends and solids from chip flow
  • Recirculating drag conveyor that automatically cleans the fluid recovery tank

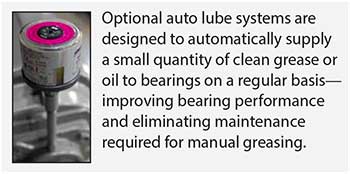

  • Auto lube system for automatic greasing of bearings
PRAB E-Series Chip Processing System Brochure Optional Features | Prab.com



PRAB E-Series Chip Processing System Brochure Product Image | Prab.com

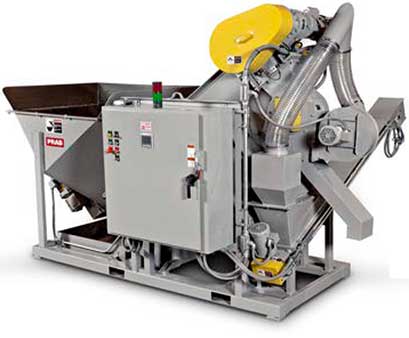

In-feed view shown with optional shredder and separator
PRAB E-Series Chip Processing System Brochure Product Image | Prab.com

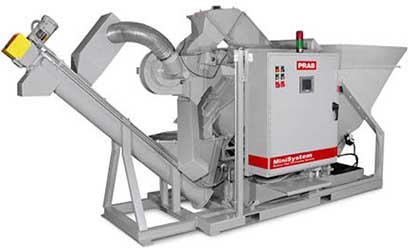

Available with front discharge conveyor configuration

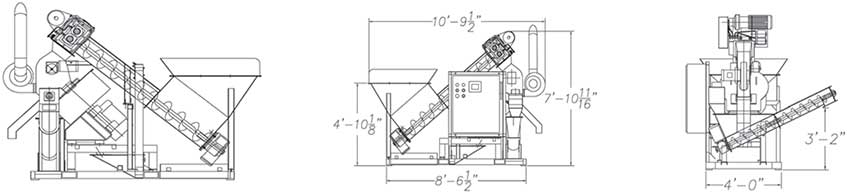

Standard Configurations (Shown with all options)



PRAB E-Series Chip Processing System Brochure Configurations | Prab.com



Nominal Chip Throughput

Steel
750 lbs/hr
Brass
600 lbs/hr
Aluminum
250 lbs/hr
Cast Iron
800 lbs/hr






Contact us to request a quote today
