PRAB Drum-Type Scraper Separator

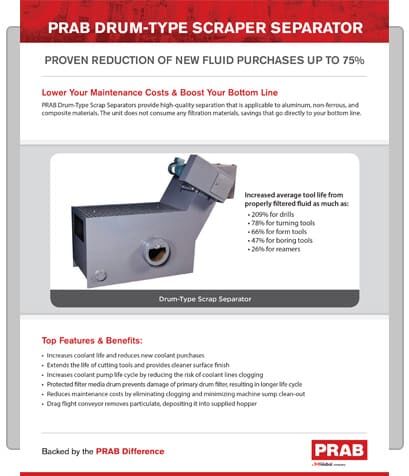

Product Brochure PDF Cover | Prab.com

Download PDF






Proven Reduction of New Fluid Purchases Up to 75%
Lower Your Maintenance Costs & Boost Your Bottom Line

PRAB Drum-Type Scrap Separators provide high-quality separation that is applicable to aluminum, non-ferrous, and composite materials. The unit does not consume any filtration materials, savings that go directly to your bottom line.

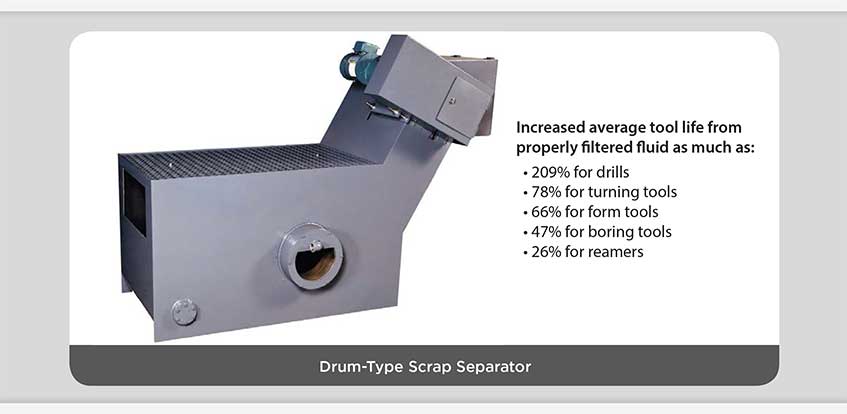

PRAB Drum-Type Scraper Separator Hero Image | Prab.com



Top Features & Benefits:

  • Increases coolant life and reduces new coolant purchases
  • Extends the life of cutting tools and provides cleaner surface finish
  • Increases coolant pump life cycle by reducing the risk of coolant lines clogging
  • Protected filter media drum prevents damage of primary drum filter, resulting in longer life cycle
  • Reduces maintenance costs by eliminating clogging and minimizing machine sump clean-out
  • Drag flight conveyor removes particulate, depositing it into supplied hopper






Backed by the PRAB Difference






Increase Coolant Life & Reduce Coolant Purchases

Operation:

Dirty coolant enters the system through the back of the Drum-Type Scrap Separator. The coolant passes through the filter sleeve inwardly into the clean tank. The chips and solids retained by the sleeve will be flushed off the filter by an internal back flushing spray bar. The solids will drop to the bottom of the separator and will be removed on a continuous basis by the drag conveyor system. As the chips slowly move up the incline, the coolant will drain from the chips back into the filter, minimizing moisture on the chips.



Model
Flow Rate
(Water)
Drum Diameter x
Number of Drums
A
B
C
D
E
F
Motor HP
SDC3-1
75 gpm
12″ x 1
39″
57″
45″
31″
13″
24″
1/8
SDC3-2
185 gpm
12″ x 2
55″
73″
45″
31″
13″
24″
1/4
SDC3-3
260 gpm
12″ x 3
71″
88″
45″
31″
13″
24″
1/4
SDC4-1
130 gpm
16″ x 1
47″
65″
45″
31″
17″
28″
1/8
SDC4-2
260 gpm
16″ x 2
65″
83″
45″
31″
17″
28″
1/4
SDC6-1
185 gpm
24″ x 1
51″
73″
53″
39″
21″
35″
1/4
SDC6-2
370 gpm
24″ x 2
78″
100″
53″
39″
21″
35″
1/4


*Flow rates above are based on water-soluble coolant and 80-micron clarity. All dimensions are reference only.

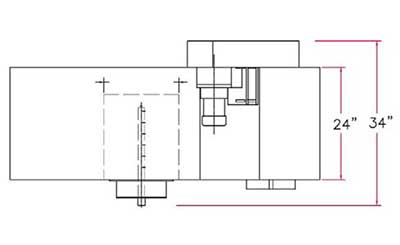

PRAB's Drum-Type Scrap Separator Layout | Prab.com
PRAB's Drum-Type Scrap Separator Layout | Prab.com



Applications:

  • All grinding applications
  • General machining
  • Milling
  • Lathe operations
  • Tube and rolling mills
  • Gear cutting
