PRAB Magnetic Separators- MSK

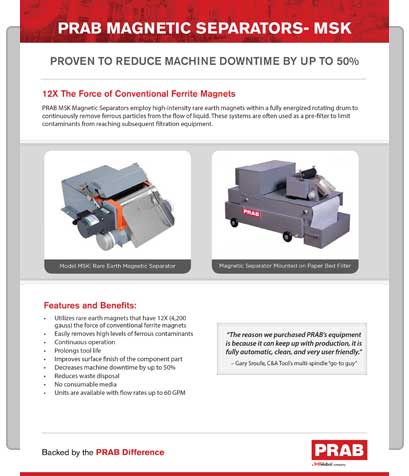

Download PDF
Proven to Reduce Machine Downtime by Up to 50%
12X The Force of Conventional Ferrite Magnets

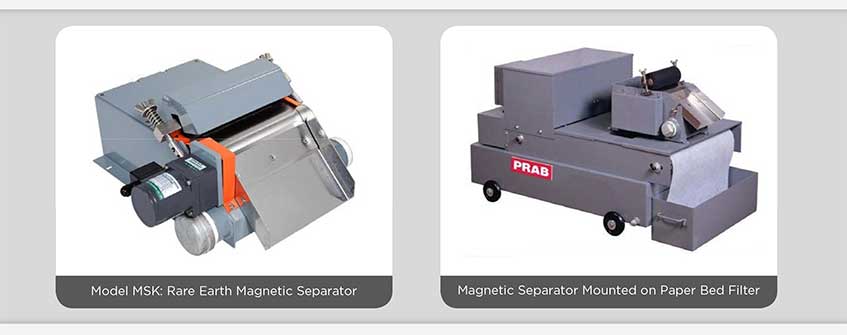

PRAB MSK Magnetic Separators employ high-intensity rare earth magnets within a fully energized rotating drum to continuously remove ferrous particles from the flow of liquid. These systems are often used as a pre-filter to limit contaminants from reaching subsequent filtration equipment.
Features and Benefits:
- Utilizes rare earth magnets that have 12X (4,200 gauss) the force of conventional ferrite magnets
- Easily removes high levels of ferrous contaminants
- Continuous operation
- Prolongs tool life
- Improves surface finish of the component part
- Decreases machine downtime by up to 50%
- Reduces waste disposal
- No consumable media
- Units are available with flow rates up to 80 GPM
Quick Ship: Most Units Ship in 5-7 Days

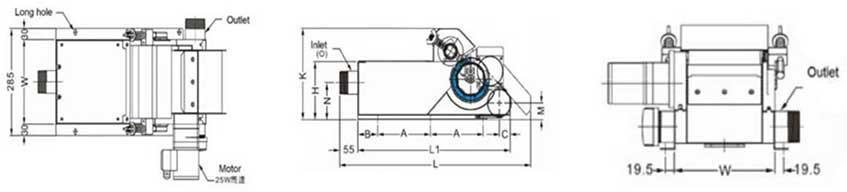

Specifications:
Model
Flow
Rate
L
L1
W
H
M
N
A
B
C
K
Inlet
(NPT)
Outlet
(NPT)
Motor
HP
MSK-40
10 GPM
19.75”
15.2”
7.5″
5.5″
1.5″
3.1″
5.25″
1.8″
1.1″
8.9″
1.5″
1.5″
1/10
MSK-60
15 GPM
22.75″
18.2″
8.8″
6″
1.7″
3.8″
6.3″
2.3″
1.3″
9.4″
2″
2″
1/10
MSK-80
20 GPM
22.75″
18.2″
10.25″
6″
1.7″
3.8″
6.3″
2.3″
1.3″
9.4″
2″
2″
1/10
MSK-100
25 GPM
23.25″
18.5″
11.6″
6.25″
1.9″
4.1″
6.6″
2.3″
1.75″
9.7″
2.5″
2.5″
1/10
MSK-150
40 GPM
24.25″
19.2″
14.4″
6.7″
2″
4.4″
6.6″
2.3″
1.8″
10.1″
3″
3″
1/10
MSK-180
45 GPM
24.25″
19.2″
17″
7″
2.2″
4.8″
6.6″
2.5″
1.9″
10.4″
3″
3″
1/10
MSK-240
60 GPM
25.5″
20″
19.9″
8″
2.75″
5.5″
6.6″
2.3″
2.4″
11.6″
3″
3″
1/10
MSK-300
80 GPM
25.5″
20″
25.4″
8″
2.75″
5.5″
6.6″
2.3″
2.4″
11.6″
4″
4″
1/10
All dimensions for reference only.
Applications:
- Ferrous Metal Machining
- Production Grinding Applications
- General Machining
- ID & OD Grinding
- Honing
- Gear Cutting
- Lapping
- Gun Drilling
- Lathe Operations
- Wire Drawing
