PRAB Magnetic Separator Product Family Brochure



Product Brochure PDF Cover | Prab.com

Download PDF





Proven to Reduce Machine Downtime by Up to 50%
Cost-Effective Fluid Clarification Options

PRAB Magnetic Separators are available with either high-intensity Ferrite magnets or Rare Earth magnets. A fully energized rotating drum continuously removes ferrous particles from the flow of liquid. These systems are often used as a pre-filter to limit contaminants reaching subsequent filtration equipment.

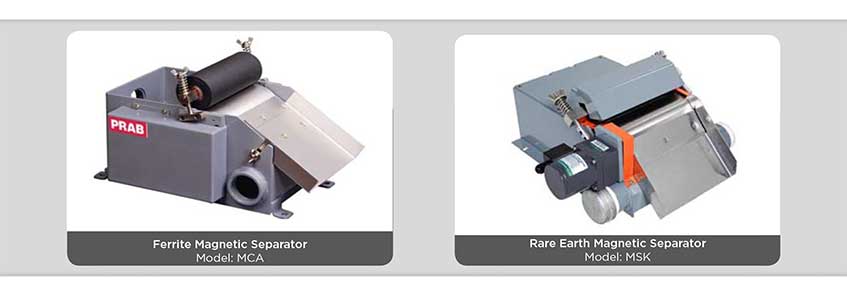

PRAB's Magnetic Separator Product Family Brochure Hero Image | Prab.com



Ferrite Magnet Models:

  • The MCA product line features ferrite magnets with 1,200 gauss rating
  • The MCJ product line features ferrite magnets with 1,600 gauss rating
  • MCA and MCJ units remove 97% of all ferrous particulate in excess of 40-micron

Top Features & Benefits:

  • Provides highly effective fluid filtration
  • Easily removes high levels of ferrous contaminants
  • Continuous operation
  • Prolongs tool life
  • Improves surface finish of the component part
  • Reduces machine downtime by up to 50%
  • Reduces waste disposal
  • Contains no consumable media



Rare Earth Magnet Models:

  • The SS product line utilizes Rare Earth Magnets rated at 3,600 gauss, which are 10X stronger than ferrite magnets
  • The MSK product line utilizes Rare Earth Magnets rated at 4,200 gauss, which are 12X stronger than ferrite magnets
  • SS and MSK units remove 97% of all ferrous particulate in excess of 15-micron



“The reason we purchased PRAB’s equipment is because it can keep up with production, it is fully automatic, clean, and very user friendly.”





– Gary Sroufe
C&A Tool’s multi-spindle
“go-to guy”







Backed by the PRAB Difference





Quick Ship: Most Units Ship in 5-7 Days

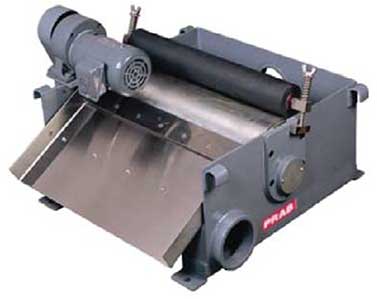

PRAB’s Magnetic Separator Models MCA & MCJ-A | Prab.com



Ferrite Magnets
(1,200 & 1,600 Gauss rating)




Models: MCA and MCJ-A
Flow Rate: Water
MCA-20
5
MCA-40
10
MCA-60
15
MCJ-80A
20
MCJ-120A
30
MCJ-160A
40
MCJ-240A
60
MCA-360
95
MCA-500
130
MCA-800
210
MCA-1000
265
MCA-1200
315

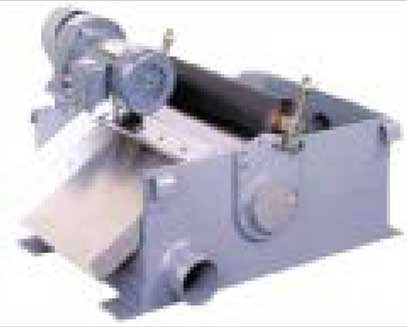

PRAB’s Magnetic Separator Model SS | Prab.com



Rare Earth Magnets
(3,600 Gauss rating)




Models: SS
Flow Rate: Water
SS-360
95
SS-500
130
SS-800
210
SS-1000
365
SS-1200
315
PRAB’s Magnetic Separator Model MSK | Prab.com



Rare Earth Magnets
(4,200 Gauss rating)




Models: MSK
Flow Rate: Water
MSK-40
10
MSK-60
15
MSK-80
20
MSK-100
25
MSK-150
40
MSK-180
45
MSK-240
60
MSK-300
80



Applications:

  • Ferrous metal machining
  • Production grinding applications
  • ID & OD grinding
  • Honing
  • Gear cutting
  • Lapping
  • Gun drilling
  • Lathe operations
  • General machining





Contact us to request a quote today
