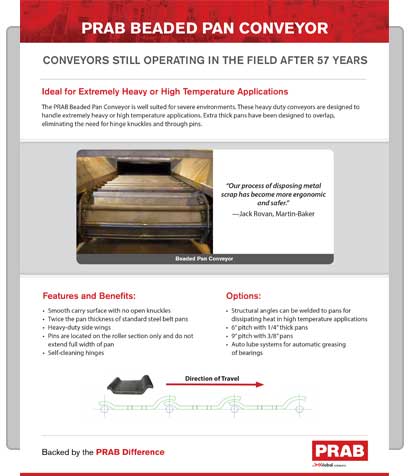

Product Brochure: Beaded Pan Conveyor






Designed For Severe Duty Applications

Ideal for Extremely Heavy or High Temperature Applications

The PRAB Beaded Pan Conveyor is well suited for severe environments. These heavy duty conveyors are designed to handle extremely heavy or high temperature applications. Extra thick pans have been designed to overlap, eliminating the need for hinge knuckles and through pins.

Beaded Pan Conveyor | Prab.com
PRAB Beaded Pan Conveyor






Features and Benefits:

  • Smooth carry surface with no open knuckles
  • Twice the pan thickness of standard steel belt pans
  • Heavy-duty side wings
  • Pins are located on the roller section only and do not extend full width of pan
  • Self-cleaning hinges

Options:

  • Structural angles can be welded to pans for dissipating heat in high temperature applications
  • 6” pitch with 1/4” thick pans
  • 9” pitch with 3/8” pans



Direction of Travel | Prab.com

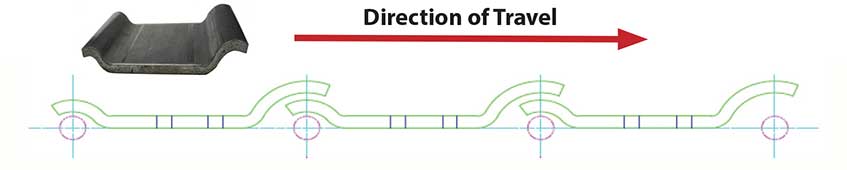

Direction of Travel

PRAB Beaded Pan Conveyor

Designed For Severe Duty Applications

Standard smooth surface | Prab.com

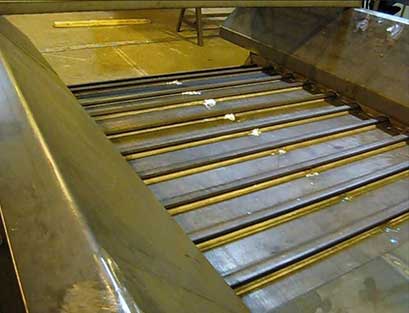

Standard smooth surface
Optional inverted flights for high temperature applications | Prab.com

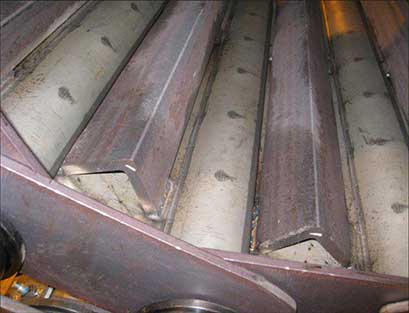

Optional inverted flights for high temperature applications



Belt section with side wings and flight | Prab.com

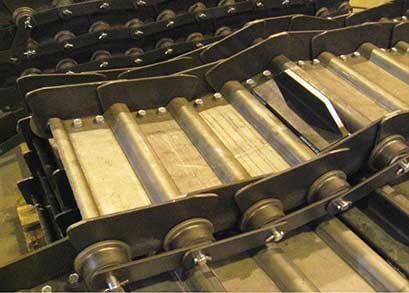

Belt section with side wings and flight
Extreme heavy-duty conveyor with optional structural angles | Prab.com

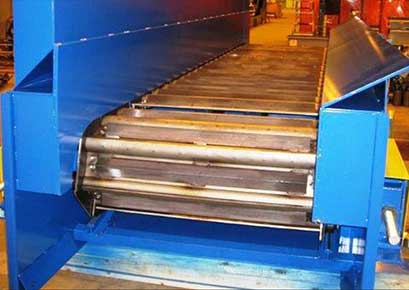

Extreme heavy-duty conveyor with optional structural angles



1/2”- 13 Hex, grade 5 bolts with spring washers secure each pan to the chain attachment plates | Prab.com

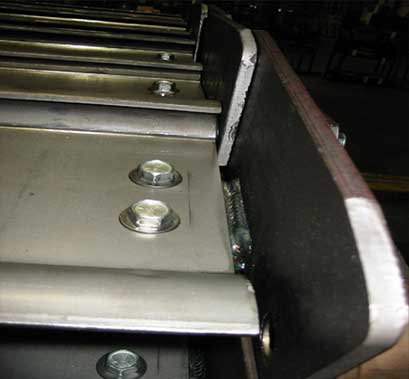

1/2”- 13 Hex, grade 5 bolts with spring washers secure each pan to the chain attachment plates
