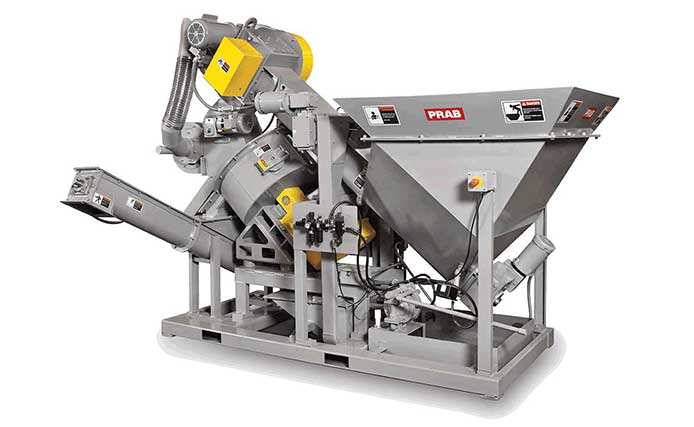

Compact, skid-mounted scrap metal equipment for turnings volume reduction and solid-liquid separation of small to medium volumes of flowable chips. Fluid reclamation and dry chip output make this scrap removal system ideal for smaller shops.
A Typical E-Series Chip Processing System Includes:
Options
Nominal Chip Throughput
Image Right: Auto lube systems are designed to automatically supply a small quantity of clean grease or oil to bearings on a regular basis-improving bearing performance and eliminating maintenance required for manual greasing.
PRAB Briquetter E-Series Metal Chip Processing System 3D Operation
The PRAB E-Series System provides metalworking operations a fully automated compact, skid-mounted chip processing solution that is proven to increase scrap value by 25%. Here’s how it works: A screw conveyor meter-feeds metal scrap to the system’s conveyor-mounted shedder. The shredder reduces light to moderate wads of turnings with high torque, low speed shearing generating flowable chips at a volume reduction up to 4 to 1. Material then flows through the tramp metal separator, removing occasional solids. Chips are blown into the system’s continuous wringer and tramp metal falls into a separate hopper. The Wringer/Centrifuge uses 600 G’s of centrifugal force to remove up to 98% of fluids, creating dry chips. PRAB’s Wringer/Centrifuge utilizes an exclusive reversing feature to extend service life and minimize maintenance. The metalworking fluids pass through the screen while the dry chips are gravity discharged into the discharge conveyor. Fines are recirculated back into the system for additional processing. The E-Series is designed for small to medium material volumes and can process most machining metal short turnings and chips. The system’s recovery tank captures the reclaimed fluid, where it can be pumped to a PRAB Guardian™ Coolant Recycling System for processing and reuse. The Guardian reduces new fluid purchases up to 75% and decreases fluid disposal costs by 90%. Built to last, the E-Series from PRAB is constructed of the highest quality wear resistant material, features PLC/HMI controls, and is virtually plug-and-play: pre-wired, pre-plumbed and mounted on a skid. The system’s integrated forklift pockets enable operators to quickly and easily set up or move the E-Series Chip Processing System.
Product Brochures
Product Brochures: E-Series Chip Processing Systems
White Paper
White Paper: Green Engineering
Other Downloadable Content
PRAB Chip Processing Systems All Product Brochure
PRAB Builds Equipment for the Toughest Jobs in Manufacturing and Metalworking
Download Proven To Reduce Metal Scrap Volume By As Much As 90% Documented Results Achieved by PRAB Customers: INCREASED REVENUE“We get $0.17 per pound more for our briquetted material over loose chips.”– Jack Rovan, Martin-Baker Plant Manufacturing Manager IMPROVED EFFICIENCY & SAFETY“PRAB has truly helped us get more money for our waste metal and improve our […]
Green Engineering How to Design More Profit into the Metalworking Operation By Ron Chapman, Systems Sales Manager & Teresa Phillips, Senior Marketing Specialist, PRAB Introduction The green movement is not a new concept. In fact, the basic principles were well-known throughout Europe in the medieval era. However, it was the Industrial Revolution in Europe that […]
Download Proven to Increase Scrap Value Up to 25% Produce 98% Dry Chips and Reclaim Cutting Fluid for Increased Waste Value The PRAB E-Series Chip System is a dependable, fully automated system for reclaiming valuable cutting fluid from wet metal chips and turnings. This compact unit was designed for small to medium material volumes and can process Aluminum, […]
