Metal Finishing or Plating Rinse Water Wastewater System Example

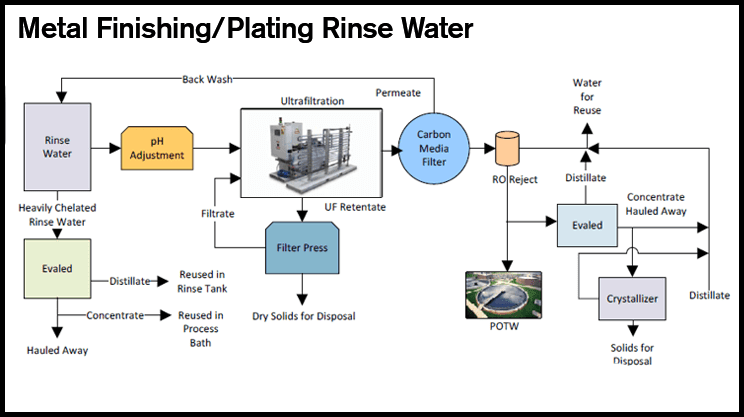

Diagram Of A Prab Metal Finishing/Plating Rinse Water Wastewater System
Managing rinse water from metal finishing and plating operations is crucial for environmental compliance and operational cost savings. PRAB offers advanced wastewater treatment systems designed to treat and recycle rinse water, enabling facilities to reuse water and reduce disposal expenses.

Comprehensive Treatment Process:

  1. pH Adjustment: The initial stage involves adjusting the pH of the wastewater to precipitate dissolved metals, facilitating their removal in subsequent steps.
  2. Ultrafiltration (UF): This process separates emulsified oils and suspended solids from the wastewater. PRAB’s ultrafiltration systems utilize crossflow filtration, pumping the slurry through membrane tubes at high velocity. The concentrate is recirculated, while the clean effluent proceeds to the next treatment stage.
  3. Activated Carbon Filtration: An activated carbon filter removes chlorine and other oxidizing compounds that could damage downstream equipment, ensuring the longevity and efficiency of the treatment system.
  4. Reverse Osmosis (RO): In this stage, the system removes up to 99.5% of dissolved solids, including minerals and salts, by pressing the treated water through a semipermeable membrane. This process produces high-quality water suitable for reuse in rinse tanks.
  5. Vacuum Evaporation (EVALED® Vacuum Evaporator): For heavily chelated or precious metal rinse waters, PRAB’s vacuum evaporators concentrate and remove salts, heavy metals, and various hazardous components. The distillate can be reused in rinse processes, and the concentrate can be returned to the process bath, achieving further volume reduction and resource recovery.



Advantages of PRAB’s Wastewater Treatment Systems:

  • Water Reuse: Facilities can reuse up to 70% of their wastewater by treating and recycling rinse water, significantly reducing freshwater consumption and associated costs.
  • Cost Savings: Implementing PRAB’s systems has led to substantial client savings. For instance, a fastener system manufacturer saved over $200,000 annually on freshwater costs.
  • Environmental Compliance: PRAB’s systems help facilities meet stringent discharge regulations by effectively removing contaminants and ensuring compliance with local and federal environmental standards.
  • Reduced Waste Disposal: The treatment process minimizes sludge generation and lowers chemical usage compared to traditional methods, leading to decreased haul-away expenses and a smaller environmental footprint.



Client Success Story:

Tube-Mac Industries implemented PRAB’s rinse water treatment system, processing over 60,000 gallons per day and reclaiming up to 70% of treated water for reuse in their plating line. This integration resulted in significant operational advantages, including reduced water expenses, lower haul-away costs, and improved product quality.

By choosing PRAB’s wastewater treatment solutions, metal finishing and plating facilities can achieve efficient water management, substantial cost savings, and enhanced environmental compliance.
