PRAB Sump Cleaner Transport Options

Product Brochure PDF Cover | Prab.com

Download PDF







TOW . WALK . LIFT . DRIVE

PRAB sump cleaners are available in several transport base options in addition to the standard bases. Tow larger sump cleaners using two- or four-wheel trailers; Walk sump cleaners to move through narrow aisles and tight quarters; Lift smaller sump cleaners with forklifts; and Drive large sump cleaners that travel long distances

Product Brochure: PRAB Sump Cleaner Transport Options Hero Image | Prab.com

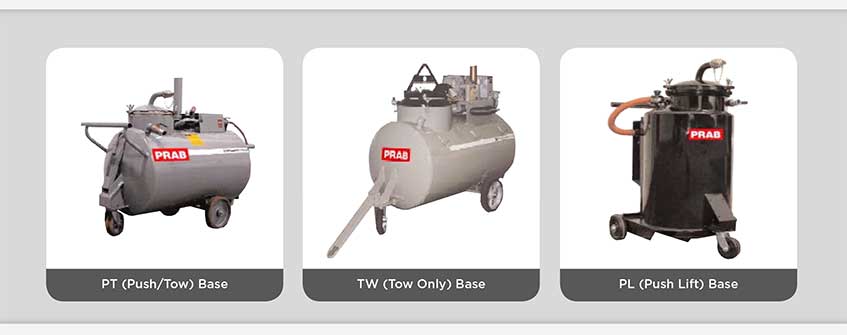

Standard Bases:

PT (Push/Tow) Base

Hand push and short haul tow operation. Can be pushed by one person or towed by tug. PT base is standard on the 90-,140- and 175-gallon single tank units and 60/60 and 100/100 combination tank units.

TW (Tow Only) Base

Tow operation. Pintle-eye hitch. Base is standard on the 300, 400, and 500-gallon single tank units and 150/150, 200/200, and 250/250 combination tank units.

PL (Push Lift) Base

Push/Lift – Three wheels. This base is unique to the 60-gallon Sump Shark. One swivel and two rigid casters help the Shark maneuver into tight spots. Fork pockets allow for pickup by fork lift.






Backed by the PRAB Difference






Optional Bases:

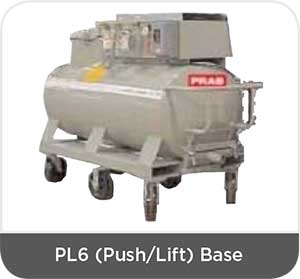

PL6 (Push/Lift) Base

Hand push or fork truck transport. Six wheels, (two rigid and four swivel casters with 8” diameter x 2” phenolic roller-bearing wheels) for mobility in tight spaces. Longitudinal sleeves have two-way entry for fork truck transport.

PRAB's PL6 (Push/Lift) Base | Prab.com

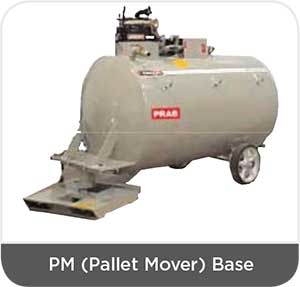

PM (Pallet Mover) Base

Pallet truck engages swivel skid, raises to transport height and maneuvers Sump cleaner through narrow aisles and tight turns.

PRAB's PM (Pallet Mover) Base | Prab.com

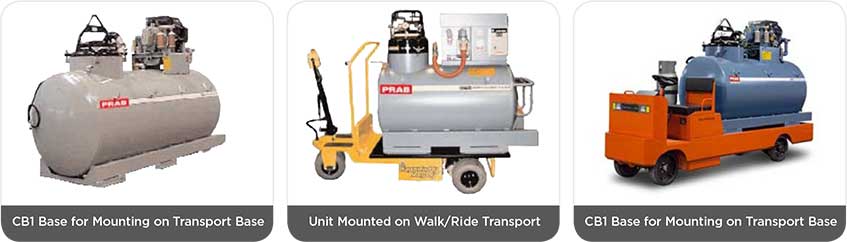

The CB1 Base customized sump cleaner transport to meet your plant’s needs.

The CB1 Base is a universal mount for use with industrial, walk/ride trucks, and 2 or 4-wheel trailers. The universal mounting base cradles the sump cleaner tank. The base is fitted with bolt flanges for easy installation on powered in-plant vehicles or trailers. The design permits a wide variety of handling options for large tank sump cleaners. Please call to discuss your transport needs.

PRAB's CB1 Base | Prab.com






Contact us to request a quote today
